Series 187
Mini Vernier Height Gauge
Graduation 0.02mm/0.001"
Carbide tipped scriber
Made of stainless steel (except the base)
Satin chrome plated scale
Specifications

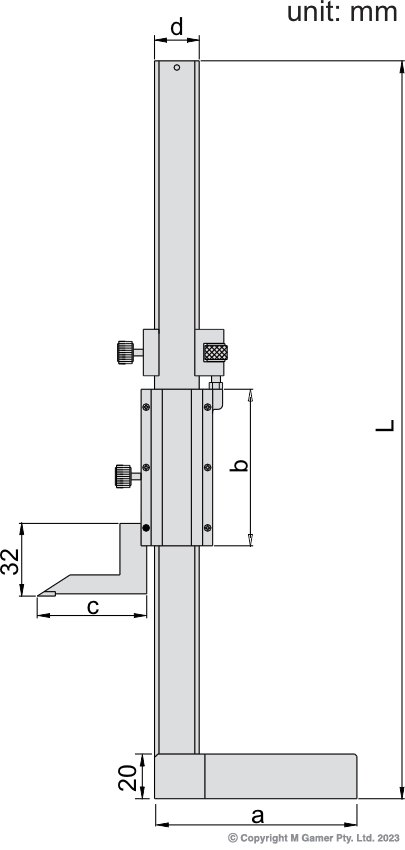

| Part No | Status | WebEnabled | Range | Accuracy | a | b | c | L | D |
|---|---|---|---|---|---|---|---|---|---|
| AC-187-006-11 | Stocked | 1 | 0-150mm/0-6" | ±0.03mm | 75 | 57 | 43 | 475 | 16 |
| AC-187-008-11 | Order In | 1 | 0-200mm/0-8" | ±0.03mm | 90 | 70 | 49 | 660 | 20 |
| AC-187-010-11 | Order In | 1 | 0-250mm/0-10" | ±0.03mm | 90 | 70 | 49 | 710 | 20 |
Note: ETA for Order In products is between 8-12 weeks.
