Series 251
Dia Bore Gauge Set
Wooden handle isolate heat conduction

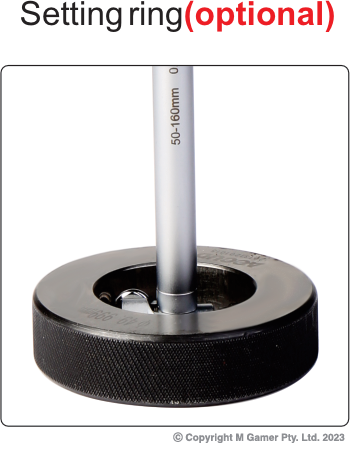

Optional accessory: series 531 setting rings
Specifications
| Part No | Status | Range | Indicator | Accuracy | Repeatability | Included Bore Gauges |
|---|---|---|---|---|---|---|
| AC-251-046-11 | Order In | 35-160mm | Range:10mm
Graduation: 0.01mm | 35-50mm -> ±0.018mm
50-160mm - > ±0.018mm | 0.003mm | 35-50mm anvil (dial indicator and handle are not included) 50-160mm bore gage |
| AC-251-346-13 | Stocked | 18-160mm | Range:10mm
Graduation: 0.01mm | 18-35mm - > ±0.015mm
35-60mm - > ±0.018mm 50-160mm - > ±0.018mm | 0.003mm | 18-35mm bore gage 35-60mm (dial indicator is not included) 50-160mm (dial indicator is not included) |
Note: ETA for Order In products is between 8-12 weeks.
