Series 299
Digital Depth Indicator
Button: on/off, zero, mm/inch, ABS, data preset, change measuring direction
Data output(cable code:200-03 or 200-04)
Automatic power off
Stainless steel base
Pointed tip
Specifications

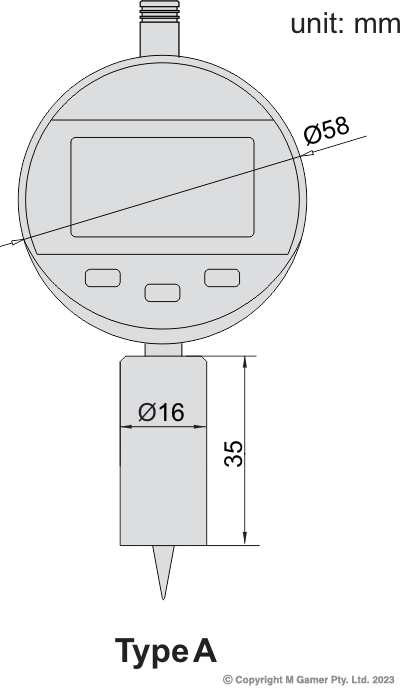

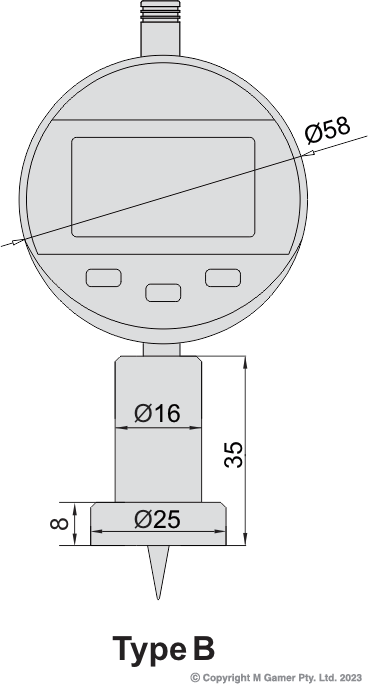

| Part No | Status | WebEnabled | Range | Accuracy | Base | Digital Indicator Stroke | Type |
|---|---|---|---|---|---|---|---|
| AC-299-010-01 | Order In | 1 | 0-12.7mm/0-0.5" | ±5μm | Ø16mm | 12.7mm/0.5" | A |
| AC-299-010-02 | Order In | 1 | 0-12.7mm/0-0.5" | ±5μm | Ø25mm | 12.7mm/0.5" | B |
| AC-299-010-11 | Order In | 1 | 0-12.7mm/0-0.5" | ±20μm | Ø16mm | 12.7mm/0.5" | A |
| AC-299-010-12 | Order In | 1 | 0-12.7mm/0-0.5" | ±20μm | Ø25mm | 12.7mm/0.5" | B |
Note: ETA for Order In products is between 8-12 weeks.
