Series 363

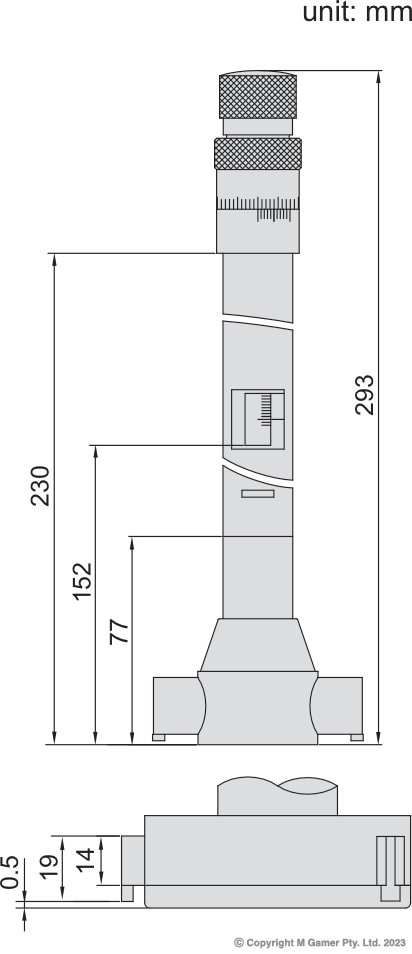

Wide Range Three Points Internal Micrometer

Graduation 0.001mm
Ratchet stop
Carbide measuring faces

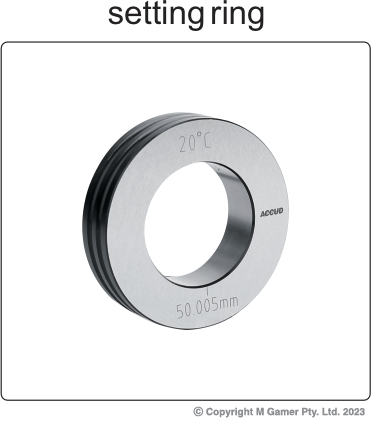

Setting rings are included(except 200-300mm)

Brochure

Specifications

Part No	Status	WebEnabled	Range	Accuracy	Setting Ring
AC-363-003-01	Order In	1	50-70mm	5μm	Ø50mm(included)
AC-363-004-01	Order In	1	70-100mm	5μm	Ø70mm(included)
AC-363-006-01	Order In	1	100-150mm	6μm	Ø100mm(included)
AC-363-010-01	Order In	1	150-250mm	8μm	Ø150mm(included)
AC-363-012-01	Order In	1	200-300mm	9μm	Ø200mm(optional)
