Series 391
Depth Micrometer
Micrometer head accuracy: ±3μm
Rod accuracy: ±(2+L/75)μm,
L is the measuring range in mm

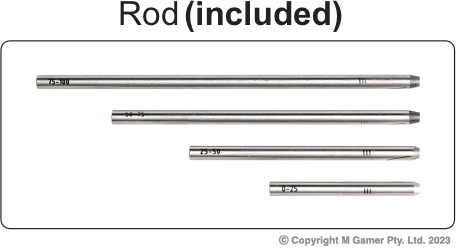

Supplied with rods
Ratchet stop
Specifications
| Part No | Status | WebEnabled | Range | Base | Rod |
|---|---|---|---|---|---|
| AC-391-001-01 | Order In | 1 | 0-25mm | 101.5x17mm | 1pc |
| AC-391-001-02 | Order In | 1 | 0-25mm | 63x17mm | 1pc |
| AC-391-002-01 | Order In | 1 | 0-50mm | 101.5x17mm | 2pcs |
| AC-391-002-02 | Order In | 1 | 0-50mm | 63x17mm | 2pcs |
| AC-391-003-01 | Order In | 1 | 0-75mm | 101.5x17mm | 3pcs |
| AC-391-003-02 | Order In | 1 | 0-75mm | 63x17mm | 3pcs |
| AC-391-004-01 | Order In | 1 | 0-100mm | 101.5x17mm | 4pcs |
| AC-391-004-02 | Order In | 1 | 0-100mm | 63x17mm | 4pcs |
| AC-391-006-01 | Stocked | 1 | 0-150mm | 101.5x17mm | 6pcs |
| AC-391-006-02 | Order In | 1 | 0-150mm | 63x17mm | 6pcs |
| AC-391-008-01 | Order In | 1 | 0-200mm | 101.5x17mm | 8pcs |
| AC-391-008-02 | Order In | 1 | 0-200mm | 63x17mm | 8pcs |
| AC-391-012-01 | 1 | 0-300mm | 101.5x17mm | 12pcs | |
| AC-391-012-02 | Order In | 1 | 0-300mm | 63x17mm | 12pcs |
Note: ETA for Order In products is between 8-12 weeks.
