Series 411
Internal Measurement Dial Caliper Gauge

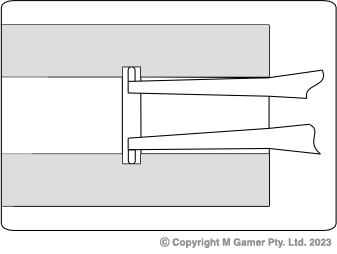

Measure the internal dimension
Graduation: 0.01mm
Specifications
| Part No | Status | WebEnabled | Range | Accuracy | a | b | L |
|---|---|---|---|---|---|---|---|
| AC-411-035-11 | Stocked | 1 | 15-35mm | ±0.04mm | 3 | Ø3 | 50 |
| AC-411-035-11L | Order In | 1 | 15-35mm | ±0.04mm | 3 | Ø3 | 200 |
| AC-411-055-11 | Stocked | 1 | 35-55mm | ±0.04mm | 6 | Ø3 | 80 |
| AC-411-055-11L | Order In | 1 | 35-55mm | ±0.04mm | 6 | Ø3 | 250 |
| AC-411-075-11 | Stocked | 1 | 55-75mm | ±0.04mm | 8 | Ø3 | 90 |
| AC-411-075-11L | Order In | 1 | 55-75mm | ±0.04mm | 8 | Ø3 | 250 |
| AC-411-095-11 | Stocked | 1 | 75-95mm | ±0.04mm | 8 | Ø3 | 100 |
| AC-411-115-11 | Stocked | 1 | 95-115mm | ±0.04mm | 10 | Ø3.2 | 120 |
| AC-411-135-11 | Stocked | 1 | 115-135mm | ±0.04mm | 10 | Ø3.2 | 120 |
Note: ETA for Order In products is between 8-12 weeks.
