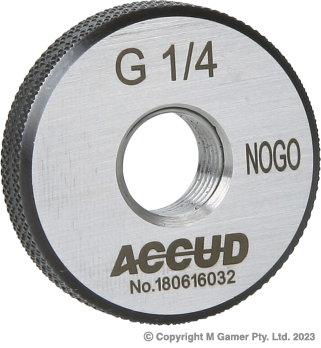

Series 535-536-545

Withworth Pipe Thread Gauge

Conforms to standard ISO228
Class B (Only Applicable to Ring Gauge)

Brochure

Specifications

Part No	Status	WebEnabled	Size (mm)	Type
AC-535-0125-01	Order In	1	G1/8-28	Ring Gauge
AC-535-0250-01	Order In	1	G1/4-19	Ring Gauge
AC-535-0375-01	Order In	1	G3/8-19	Ring Gauge
AC-535-0500-01	Order In	1	G1/2-14	Ring Gauge
AC-535-0625-01	Order In	1	G5/8-14	Ring Gauge
AC-535-0750-01	Order In	1	G3/4-14	Ring Gauge
AC-535-0875-01	Order In	1	G7/8-14	Ring Gauge
AC-535-1000-01	Order In	1	G1-11	Ring Gauge
AC-535-1125-01	Order In	1	G1-1/8-11	Ring Gauge
AC-535-1250-01	Order In	1	G1-1/4-11	Ring Gauge
AC-535-1500-01	Order In	1	G1-1/2-11	Ring Gauge
AC-535-1750-01	Order In	1	G1-3/4-11	Ring Gauge
AC-535-2000-01	Order In	1	G2-11	Ring Gauge
AC-535-2500-01	Order In	1	G2-1/2-11	Ring Gauge
AC-535-3000-01	Order In	1	G3-11	Ring Gauge
AC-535-4000-01	Order In	1	G4-11	Ring Gauge
AC-545-0125-01	Order In	1	G1/8-28	Plug Gauge
AC-545-0250-01	Order In	1	G1/4-19	Plug Gauge
AC-545-0375-01	Order In	1	G3/8-19	Plug Gauge
AC-545-0500-01	Order In	1	G1/2-14	Plug Gauge
AC-545-0625-01	Order In	1	G5/8-14	Plug Gauge
AC-545-0750-01	Order In	1	G3/4-14	Plug Gauge
AC-545-0875-01	Order In	1	G7/8-14	Plug Gauge
AC-545-1000-01	Order In	1	G1-11	Plug Gauge
AC-545-1125-01	Order In	1	G1-1/8-11	Plug Gauge
AC-545-1250-01	Order In	1	G1-1/4-11	Plug Gauge
AC-545-1500-01	Order In	1	G1-1/2-11	Plug Gauge
AC-545-1750-01	Order In	1	G1-3/4-11	Plug Gauge
AC-545-2000-01	Order In	1	G2-11	Plug Gauge
AC-545-2500-01	Order In	1	G2-1/2-11	Plug Gauge
AC-545-3000-01	Order In	1	G3-11	Plug Gauge
