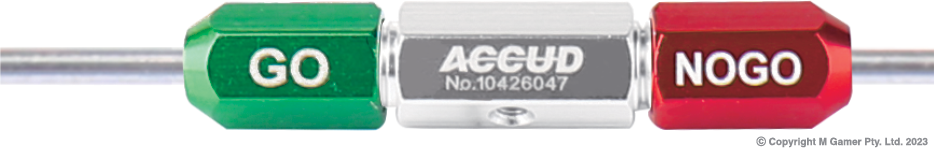

Series 541

Carbide Plain Plug Gauge

Grade H7
Hardness HRC 85+89
Supplied range from 1mm to 30mm

Brochure

Specifications

Part No	Status	WebEnabled	Size (mm)	Type

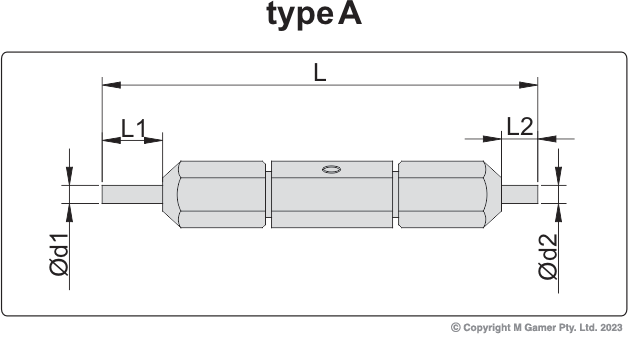

AC-541-002-17T	Order In	1	Ø2	A
AC-541-003-17T	Order In	1	Ø3	A
AC-541-004-17T	Order In	1	Ø4	A
AC-541-005-17T	Order In	1	Ø5	A
AC-541-006-17T	Order In	1	Ø6	A
AC-541-007-17T	Order In	1	Ø7	A
AC-541-008-17T	Order In	1	Ø8	A
AC-541-009-17T	Order In	1	Ø9	B
AC-541-010-17T	Order In	1	Ø10	B
AC-541-011-17T	Order In	1	Ø11	B
AC-541-012-17T	Order In	1	Ø12	B
AC-541-013-17T	Order In	1	Ø13	B
AC-541-014-17T	Order In	1	Ø14	B
AC-541-015-17T	Order In	1	Ø15	B
AC-541-016-17T	Order In	1	Ø16	B
AC-541-017-17T	Order In	1	Ø17	B
AC-541-018-17T	Order In	1	Ø18	B
AC-541-019-17T	Order In	1	Ø19	B
AC-541-020-17T	Order In	1	Ø20	B
AC-541-021-17T	Order In	1	Ø21	B
AC-541-022-17T	Order In	1	Ø22	B
AC-541-023-17T	Order In	1	Ø23	B
AC-541-024-17T	Order In	1	Ø24	B
AC-541-025-17T	Order In	1	Ø25	B
AC-541-026-17T	Order In	1	Ø26	B
AC-541-027-17T	Order In	1	Ø27	B
AC-541-028-17T	Order In	1	Ø28	B
AC-541-029-17T	Order In	1	Ø29	B
AC-541-030-17T	Order In	1	Ø30	B
