Series 541
Plain Plug Gauge
Grade H7
Hardness HRC 60±2
Confirms to standard GB/T 1957-2006
Supplied range from 1mm to 100mm
Specifications
| Part No | Status | WebEnabled | Size (mm) | Type |
|---|---|---|---|---|

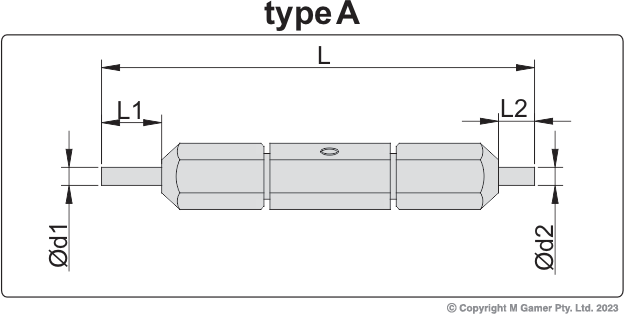

| AC-541-002-17 | Order In | 1 | Ø2 | A |
| AC-541-003-17 | Order In | 1 | Ø3 | A |
| AC-541-004-17 | Order In | 1 | Ø4 | A |
| AC-541-005-17 | Order In | 1 | Ø5 | A |
| AC-541-006-17 | Order In | 1 | Ø6 | A |
| AC-541-007-17 | Order In | 1 | Ø7 | A |
| AC-541-008-17 | Order In | 1 | Ø8 | A |

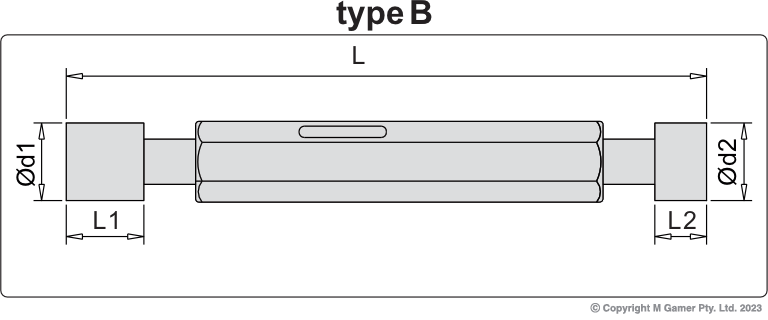

| AC-541-009-17 | Order In | 1 | Ø9 | B |
| AC-541-010-17 | Order In | 1 | Ø10 | B |
| AC-541-011-17 | Order In | 1 | Ø11 | B |
| AC-541-012-17 | Order In | 1 | Ø12 | B |
| AC-541-013-17 | Order In | 1 | Ø13 | B |
| AC-541-014-17 | Order In | 1 | Ø14 | B |
| AC-541-015-17 | Order In | 1 | Ø15 | B |
| AC-541-016-17 | Order In | 1 | Ø16 | B |
| AC-541-017-17 | Order In | 1 | Ø17 | B |
| AC-541-018-17 | Order In | 1 | Ø18 | B |
| AC-541-019-17 | Order In | 1 | Ø19 | B |
| AC-541-020-17 | Order In | 1 | Ø20 | B |
| AC-541-021-17 | Order In | 1 | Ø21 | B |
| AC-541-022-17 | Order In | 1 | Ø22 | B |
| AC-541-023-17 | Order In | 1 | Ø23 | B |
| AC-541-024-17 | Order In | 1 | Ø24 | B |
| AC-541-025-17 | Order In | 1 | Ø25 | B |
| AC-541-026-17 | Order In | 1 | Ø26 | B |
| AC-541-027-17 | Order In | 1 | Ø27 | B |
| AC-541-028-17 | Order In | 1 | Ø28 | B |
| AC-541-029-17 | Order In | 1 | Ø29 | B |
| AC-541-030-17 | Order In | 1 | Ø30 | B |
| AC-541-031-17 | Order In | 1 | Ø31 | B |
| AC-541-032-17 | Order In | 1 | Ø32 | B |
| AC-541-033-17 | Order In | 1 | Ø33 | B |
| AC-541-034-17 | Order In | 1 | Ø34 | B |
| AC-541-035-17 | Order In | 1 | Ø35 | B |
| AC-541-036-17 | Order In | 1 | Ø36 | B |
| AC-541-037-17 | Order In | 1 | Ø37 | B |
| AC-541-038-17 | Order In | 1 | Ø38 | B |
| AC-541-039-17 | Order In | 1 | Ø39 | B |
| AC-541-040-17 | Order In | 1 | Ø40 | B |
| AC-541-041-17 | Order In | 1 | Ø41 | B |
| AC-541-042-17 | Order In | 1 | Ø42 | B |
| AC-541-043-17 | Order In | 1 | Ø43 | B |
| AC-541-044-17 | Order In | 1 | Ø44 | B |
| AC-541-045-17 | Order In | 1 | Ø45 | B |
| AC-541-046-17 | Order In | 1 | Ø46 | B |
| AC-541-047-17 | Order In | 1 | Ø47 | B |
| AC-541-048-17 | Order In | 1 | Ø48 | B |
| AC-541-049-17 | Order In | 1 | Ø49 | B |
| AC-541-050-17 | Order In | 1 | Ø50 | B |

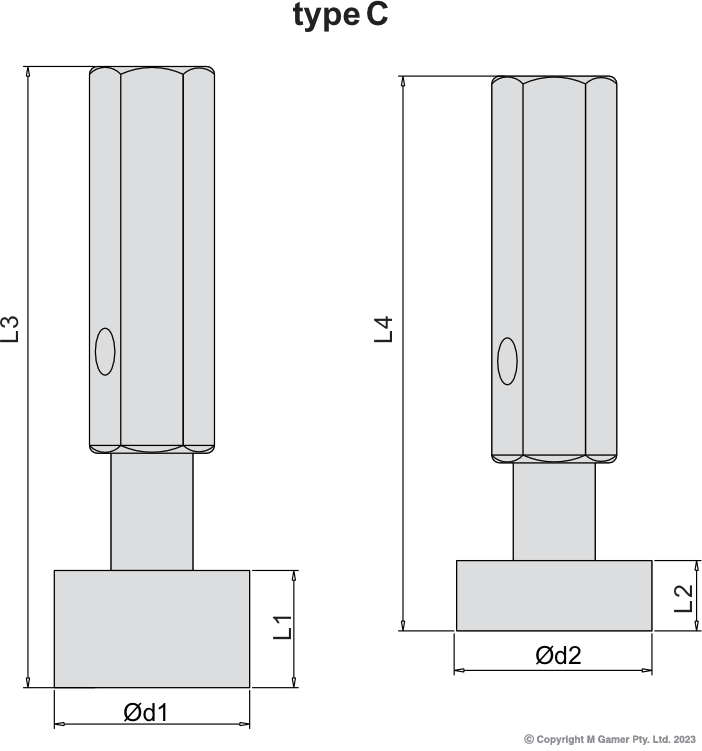

| AC-541-052-17 | Order In | 1 | Ø52 | C |
| AC-541-055-17 | Order In | 1 | Ø55 | C |
| AC-541-060-17 | Order In | 1 | Ø60 | C |
| AC-541-065-17 | Order In | 1 | Ø65 | C |
| AC-541-070-17 | Order In | 1 | Ø70 | C |
| AC-541-075-17 | Order In | 1 | Ø75 | C |
| AC-541-080-17 | Order In | 1 | Ø80 | C |
| AC-541-085-17 | Order In | 1 | Ø85 | C |
| AC-541-090-17 | Order In | 1 | Ø90 | C |
| AC-541-095-17 | Order In | 1 | Ø95 | C |
| AC-541-100-17 | Order In | 1 | Ø100 | C |
Note: ETA for Order In products is between 8-12 weeks.
