Series 652
Precision Vise
Parallelism: 5μm/100mm
Squareness: 5μm/100mm
Made of alloy steel
Hardness HRC56-58
Specifications

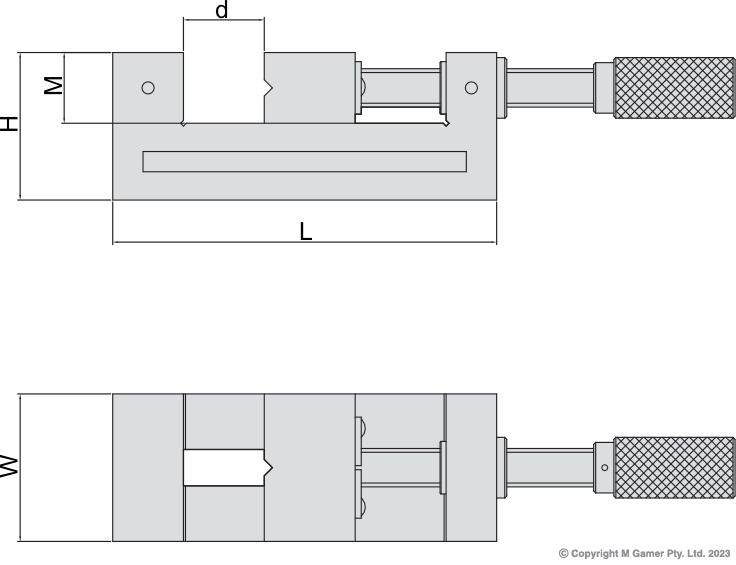

| Part No | Status | WebEnabled | Jaw Opening | Jaw Width | L | H | W |
|---|---|---|---|---|---|---|---|
| AC-652-073-01 | Order In | 1 | 73mm | 63mm | 176mm | 63mm | 30mm |
| AC-652-076-01 | Order In | 1 | 76mm | 73mm | 190mm | 73mm | 35mm |
| AC-652-120-01 | Order In | 1 | 120mm | 88mm | 255mm | 82mm | 40mm |
Note: ETA for Order In products is between 8-12 weeks.
