Series 953
Long Handle Telescoping Gauge

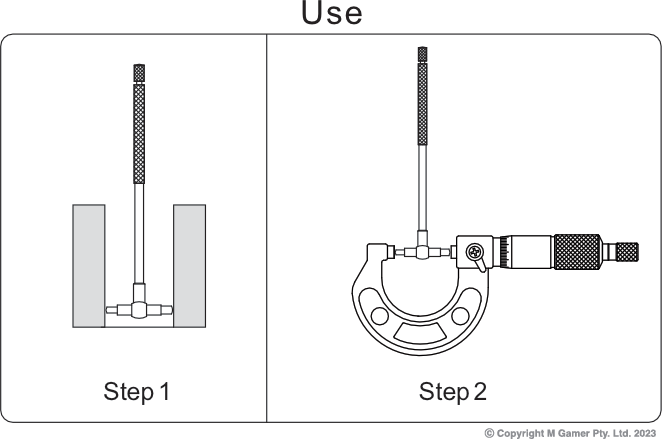

For quick measuring inside diameter of deep holes and width of slots
Satin chrome finish
Specifications

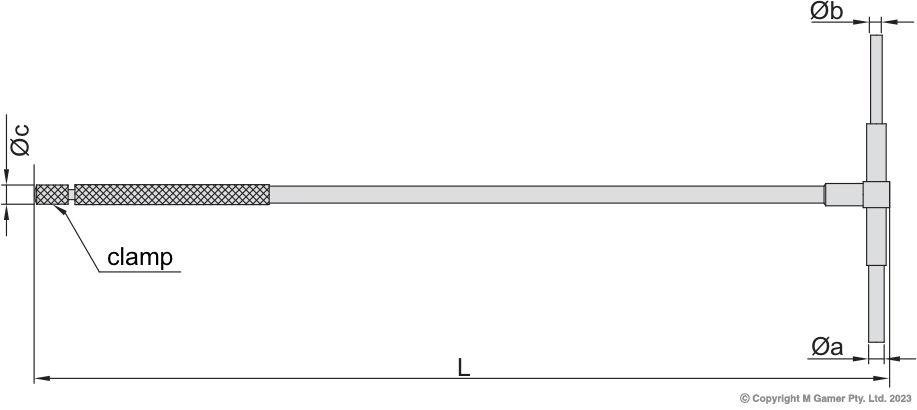

| Part No | Status | WebEnabled | Range | L | a | b | c |
|---|---|---|---|---|---|---|---|
| AC-953-001-01 | Order In | 1 | 8-12.7mm | 250mm | 3.9mm | 2.9mm | 6.2mm |
| AC-953-002-01 | Order In | 1 | 12.7-19mm | 250mm | 5.3mm | 3.8mm | 6.2mm |
| AC-953-003-01 | Order In | 1 | 19-32mm | 250mm | 5.3mm | 3.8mm | 6.2mm |
| AC-953-004-01 | Order In | 1 | 32-54mm | 300mm | 7.6mm | 6.1mm | 7.2mm |
| AC-953-005-01 | Order In | 1 | 54-90mm | 300mm | 7.6mm | 6.1mm | 7.2mm |
| AC-953-006-01 | Order In | 1 | 90-150mm | 300mm | 7.6mm | 6.1mm | 7.2mm |
Note: ETA for Order In products is between 8-12 weeks.
