Series 964
Taper Bore Gauge

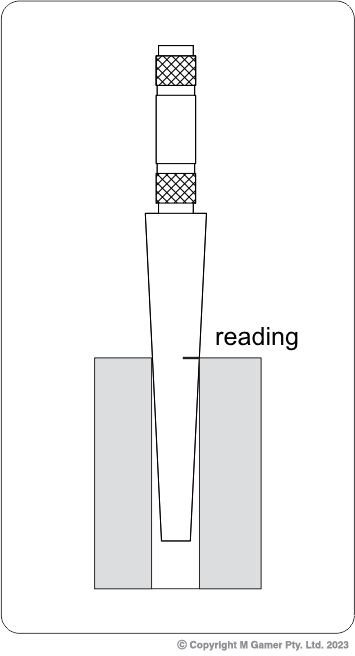

Quick measuring diameter of the bore
Hardened steel, HRC50-58
Satin chrome plated surface
Aluminium oxided handle
Specifications

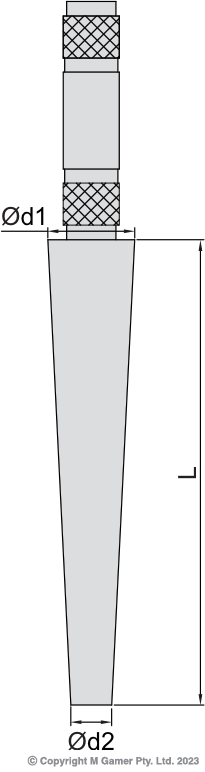

| Part No | Status | WebEnabled | Range | Graduation | Accuracy | L | d1 | d2 |
|---|---|---|---|---|---|---|---|---|
| AC-964-006-11 | Order In | 1 | 1-6.5mm | - | ±0.05mm | 62.5 | 7 | 0.8 |
| AC-964-015-11 | Order In | 1 | 3-15mm | - | ±0.05mm | 143 | 17 | 2.8 |
| AC-964-030-11 | Order In | 1 | 15-30mm | - | ±0.05mm | 165 | 31 | 14.7 |
| AC-964-045-11 | Order In | 1 | 30-45mm | 0.1mm | ±0.05mm | 165 | 46 | 29.6 |
Note: ETA for Order In products is between 8-12 weeks.
