Series DFXXE
Digital Force Gauge
For pull and push measurement
Adjusting the display direction automatically
With overload protection
Peak and real-time mode
Unit: N, gf, kgf, ozf, lbf
Memory: 500
Power off automatically
Specifications
| Part No | Status | Specification |
|---|---|---|
| AC-DF1000E | Order In | Range: 1000N

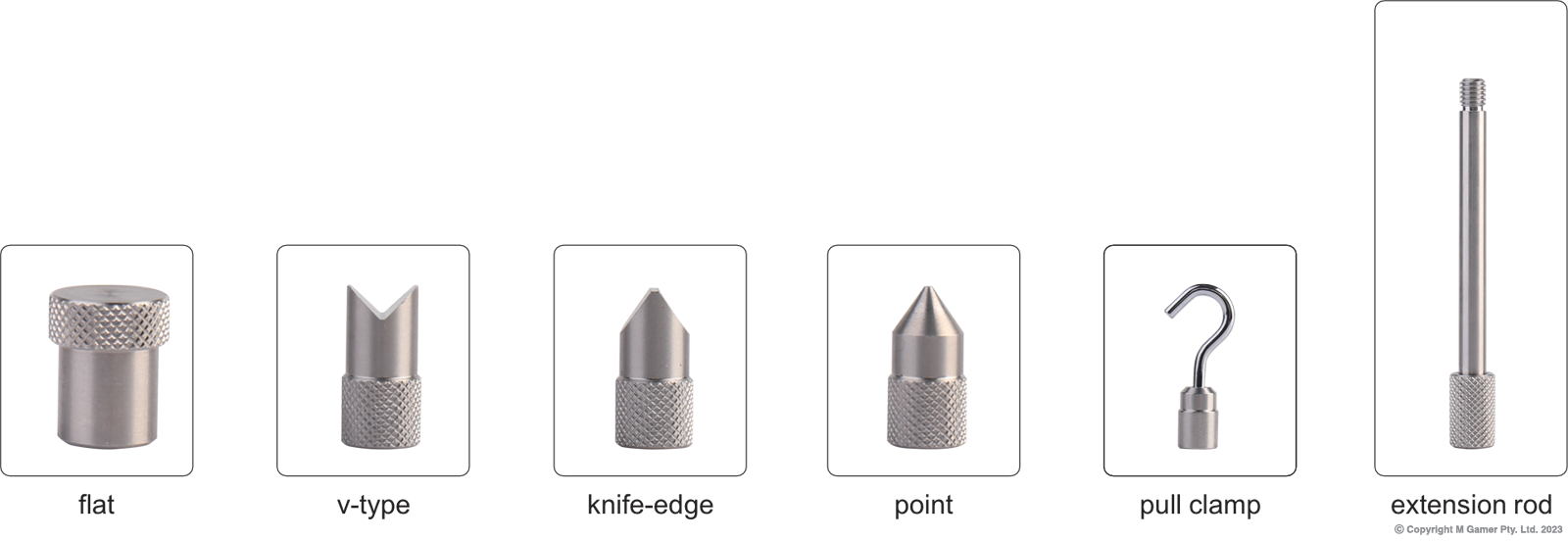

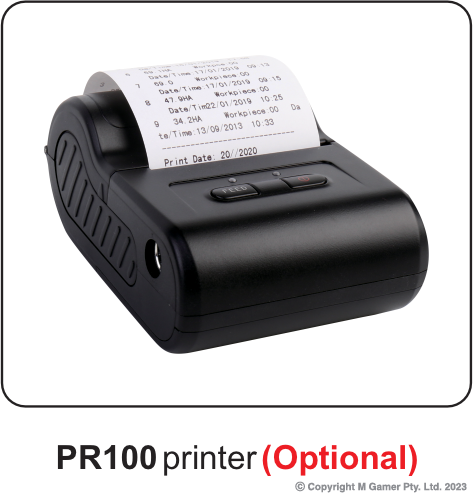

Resolution: 1N Accuracy: ±0.3% x FS (full scale) Power: rechargeable battery Dimension: 150x72x33mm Weight: 450g Included accessories Main unit: 1pc Charger: 1pc Software: 1pc Push/pull clamps: 6pcs(flat, V Type, knife-edge, point, pull clamp, extension rod Optional accessories Wireless printer: PR100 Stand: FS1000 |
| AC-DF100E | Order In | Range: 100N
Resolution: 0.1N Accuracy: ±0.3% x FS (full scale) Power: rechargeable battery Dimension: 150x72x33mm Weight: 450g Optional accessories Wireless printer: PR100 Stand: FS1000 |
| AC-DF10E | Order In | Range: 10N
Resolution: 0.01N Accuracy: ±0.3% x FS (full scale) Power: rechargeable battery Dimension: 150x72x33mm Weight: 450g Included accessories Main unit: 1pc Charger: 1pc Software: 1pc Push/pull clamps: 6pcs(flat, V Type, knife-edge, point, pull clamp, extension rod Optional accessories Wireless printer: PR100 Stand: FS1000 |
| AC-DF500E | Order In | Range: 500N
Resolution: 0.1N Accuracy: ±0.3% x FS (full scale) Power: rechargeable battery Dimension: 150x72x33mm Weight: 450g Included accessories Main unit: 1pc Charger: 1pc Software: 1pc Push/pull clamps: 6pcs(flat, V Type, knife-edge, point, pull clamp, extension rod Optional accessories Wireless printer: PR100 Stand: FS1000 |
| AC-DF50E | Order In | Range: 50N
Resolution: 0.01N Accuracy: ±0.3% x FS (full scale) Power: rechargeable battery Dimension: 150x72x33mm Weight: 450g Included accessories Main unit: 1pc Charger: 1pc Software: 1pc Push/pull clamps: 6pcs(flat, V Type, knife-edge, point, pull clamp, extension rod Optional accessories Wireless printer: PR100 Stand: FS1000 |
Note: ETA for Order In products is between 8-12 weeks.
