Series 216

Digital Indicator

Indicators

Digital

Reading in digital and analog
Display can be rotated by 320°
Button : on/off, zero, tolerance
Go and No-Go display,
data preset, measuring direction change, max./min./TIR, absolute/incremental measurement,mm/inch,data output
Keep preset data and tolerance data in memory after restart
Automatic power off
Data output (cable code: 200-01 or 200-02)
Supplied with lug and flat back

Brochure

Specifications

Part No	Status	WebEnabled	Range	Accuracy	Hysteresis	Resolution

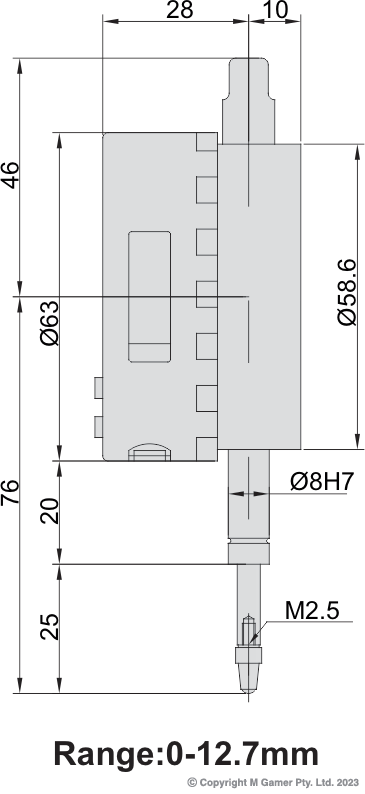

AC-216-010-01	Stocked	1	12.7mm/0.5'	5µm	2µm	0.001mm/0.00005"

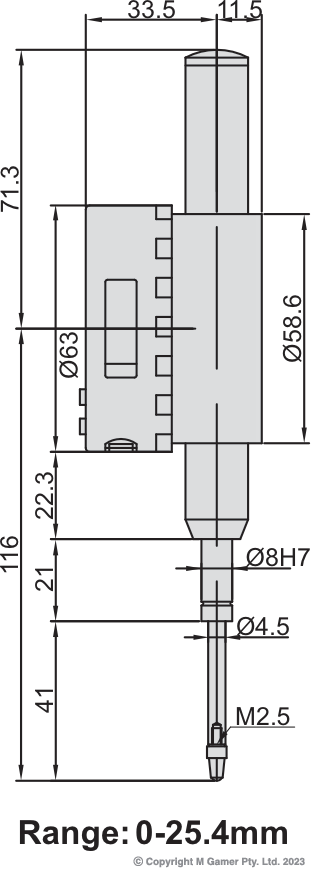

AC-216-025-01	Stocked	1	25.4mm/1'	5µm	3µm	0.001mm/0.00005"

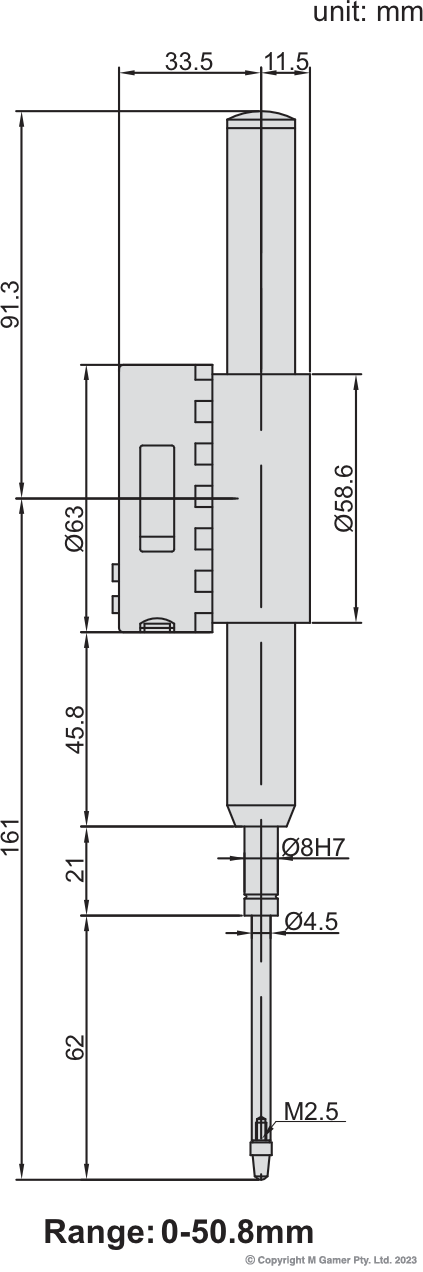

AC-216-050-01	Stocked	1	50.8mm/2'	6µm	3µm	0.001mm/0.00005"
