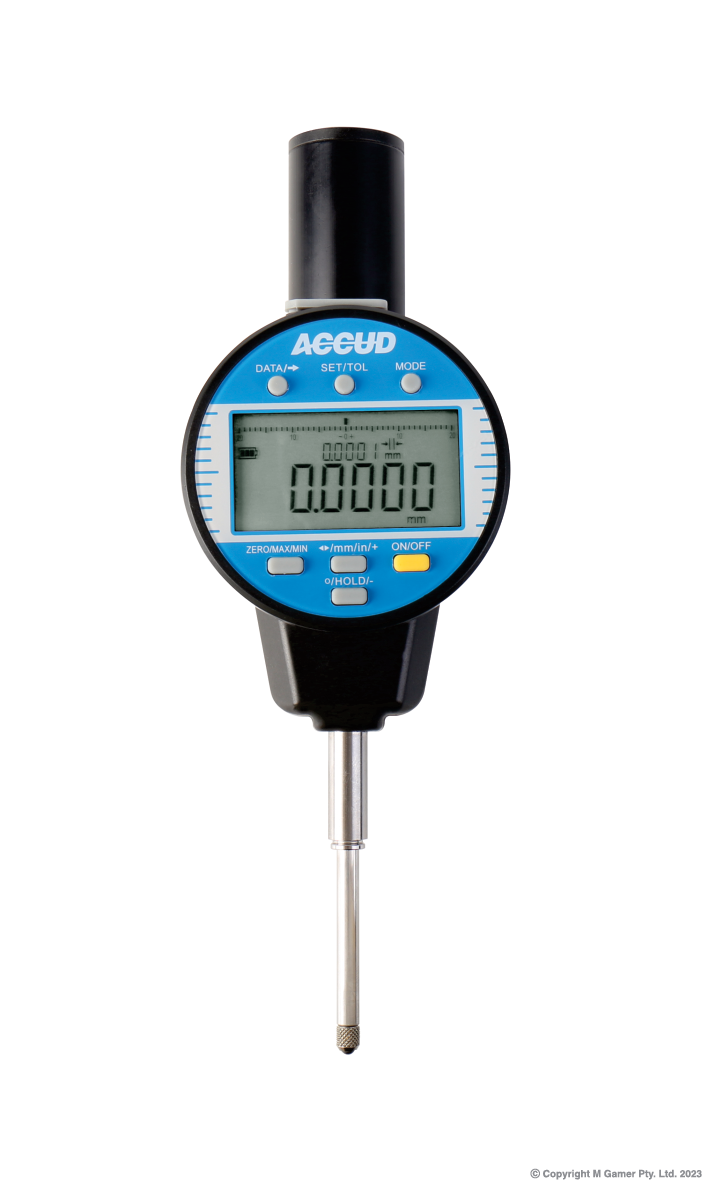

Series 218

High Precision Digital Indicator

Indicators

Digital

Linear ball bearings for ten million times use
Absolute encoder, the original data remains after power off
Reading in digital and analog

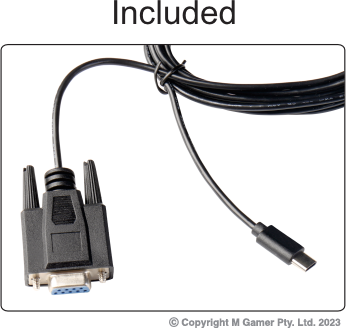

Supplied with RS232 cable (with software)
Button: tolerance, data preset, data hold, measuring direction change, max./min./TIR, power off time, on/off, mm/inch, resolution adjustment
Power: rechargeable battery, for 24 hours
continuous working(full charge)

Brochure

Specifications

Part No	Status	WebEnabled	Range	Accuracy	Hysteresis	Resolution	Styli	Back

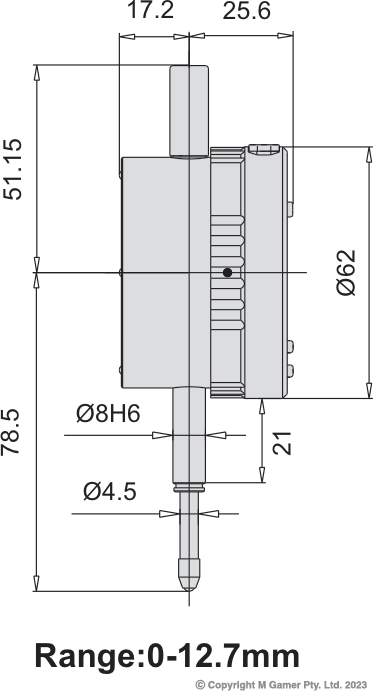

AC-218-010-01	Order In	1	12.7mm/0.5"	1.5µm	1µm	0.0002mm/0.00001" 0.001mm/0.00005" 0.01mm/0.0005"	Ruby	flat
AC-218-010-11	Order In	1	12.7mm/0.5"	3µm	1.5µm	0.0005mm/0.00002" 0.001mm/0.00005" 0.01mm/0.0005"	Carbide	flat

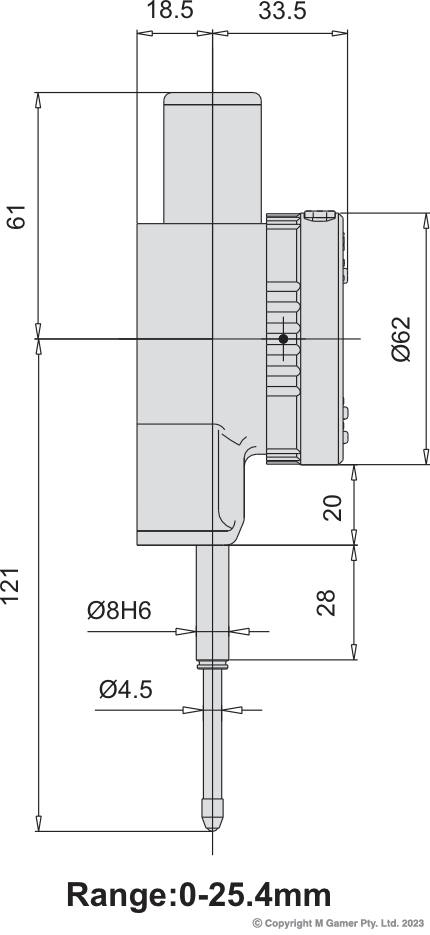

AC-218-025-01	Order In	1	25.4mm/1"	1.8µm	1µm	0.0002mm/0.00001" 0.001mm/0.00005" 0.01mm/0.0005"	Ruby	flat
AC-218-025-11	Order In	1	25.4mm/1"	3µm	1.5µm	0.0005mm/0.00002" 0.001mm/0.00005" 0.01mm/0.0005"	Carbide	flat

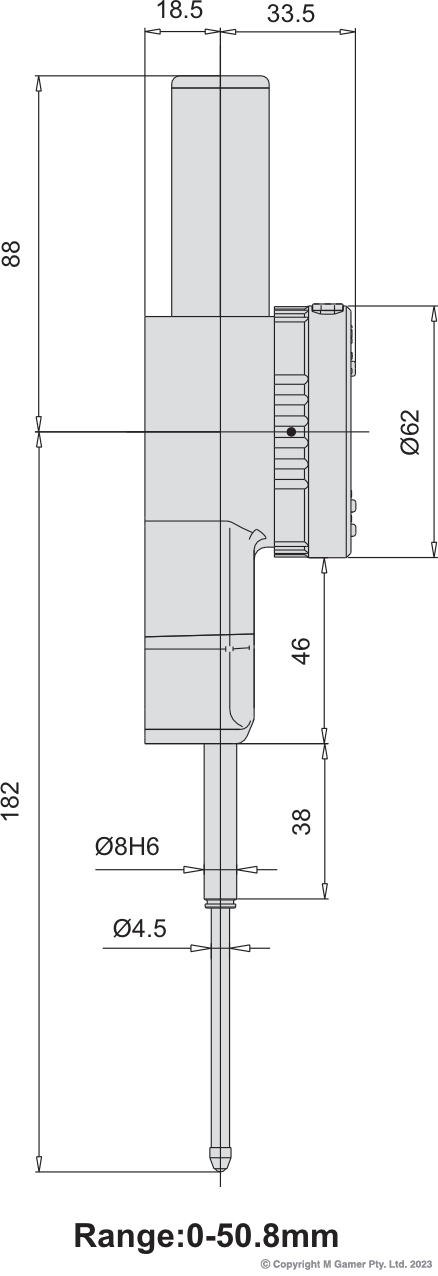

AC-218-050-11	Order In	1	50.8mm/2"	3µm	1.5µm	0.0005mm/0.00002" 0.001mm/0.00005" 0.01mm/0.0005"	Carbide	flat
