Series 301

Non Rotating Spindle Universal Micrometer

Outside Micrometers

Analogue

Graduation 0.01mm
Non-rotating spindle
Ratchet stop
Supplied with 7 pairs of anvil/spindle tips

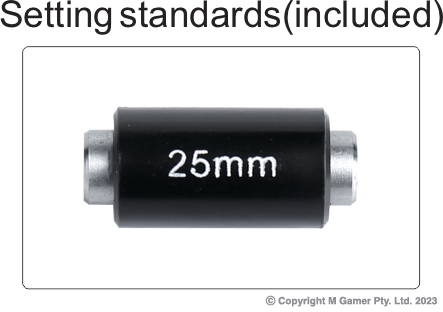

Setting standards are included (except 0-25mm)
Optional accessory: 55°anvil/spindle tip

Brochure

Specifications

Part No	Status	WebEnabled	Range	Accuracy	h	L	Setting Standards
AC-301-001-01	Order In	1	0-25mm	4μm	26	42	-
AC-301-002-01	Order In	1	25-50mm	4μm	38	67	25mm
AC-301-003-01	Order In	1	50-75mm	5μm	50	92	50mm
AC-301-004-01	Order In	1	75-100mm	5μm	62	118	75mm
AC-301-005-01	Order In	1	100-125mm	6μm	70	143	100mm
AC-301-006-01	Order In	1	125-150mm	6μm	82	168	125mm
AC-301-007-01	Order In	1	150-175mm	7μm	95	192	150mm
AC-301-008-01	Order In	1	175-200mm	7μm	107	217	175mm
