Series 326

Blade Micrometer

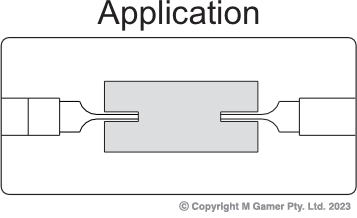

Measure the small groove diameter
Graduation: 0.01mm
Non-rotating spindle
Ratchet stop
Setting standards are included(except 0-25mm)

Brochure

Specifications

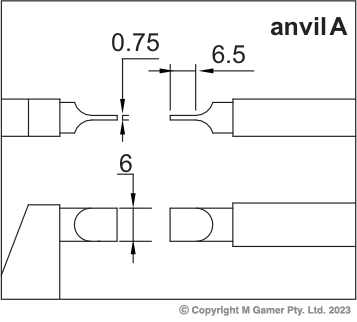

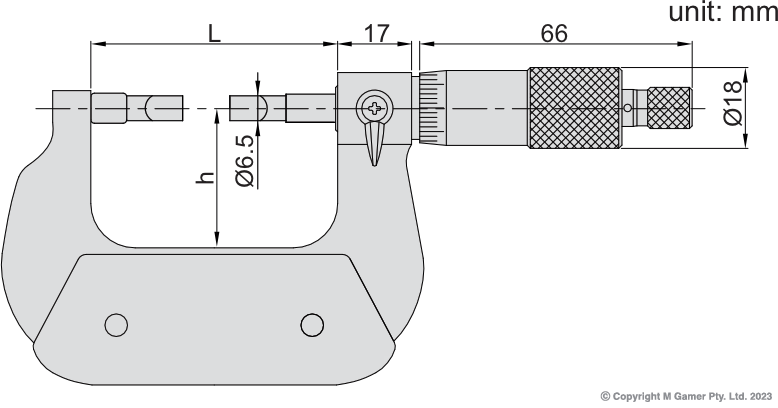

Part No	Status	WebEnabled	Range	Accuracy	h	L	Anvil
AC-326-001-03	Stocked	1	0-25mm	4μm	35	57	A
AC-326-001-04	Order In	1	0-25mm	4μm	35	57	B
AC-326-002-03	Stocked	1	25-50mm	4μm	46	82	A
AC-326-002-04	Order In	1	25-50mm	4μm	46	82	B
AC-326-003-03	Stocked	1	50-75mm	5μm	58	107	A
AC-326-004-03	Stocked	1	75-100mm	5μm	70	133	A
AC-326-005-03	Stocked	1	100-125mm	6μm	83	158	A
AC-326-006-03	Stocked	1	125-150mm	6μm	96	183	A
AC-326-007-03	Order In	1	150-175mm	7μm	109	209	A
