Series 312
Digital Outside Micrometer
Resolution: 0.001mm/0.00005"
Button: ON/OFF/SET, ABS/INC/UNIT
Carbide measuring faces
Ratchet stop

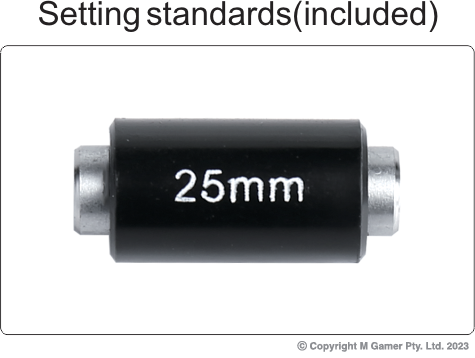

Setting standards are included (except 312-001-03)
Specifications

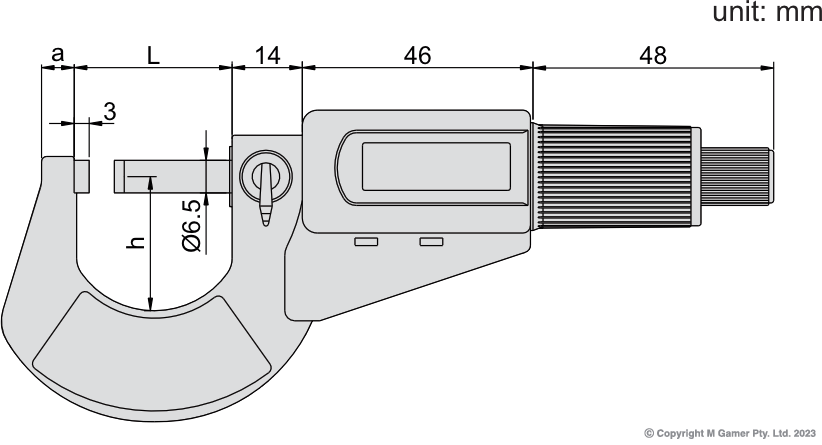

| Part No | Status | WebEnabled | Range | Accuracy | a | h | L | Setting Standards |
|---|---|---|---|---|---|---|---|---|
| AC-312-001-03 | Stocked | 1 | 0-25mm/0-1" | ±2µm | 6 | 27.5 | 32 | - |
| AC-312-002-03 | Order In | 1 | 25-50mm/1-2" | ±2µm | 8 | 37 | 57 | 25mm |
| AC-312-003-03 | Order In | 1 | 50-75mm/2-3" | ±3µm | 8 | 50 | 82 | 50mm |
| AC-312-004-03 | Order In | 1 | 75-100mm/3-4" | ±3µm | 10 | 61 | 107 | 75mm |
Note: ETA for Order In products is between 8-12 weeks.
