Series 317

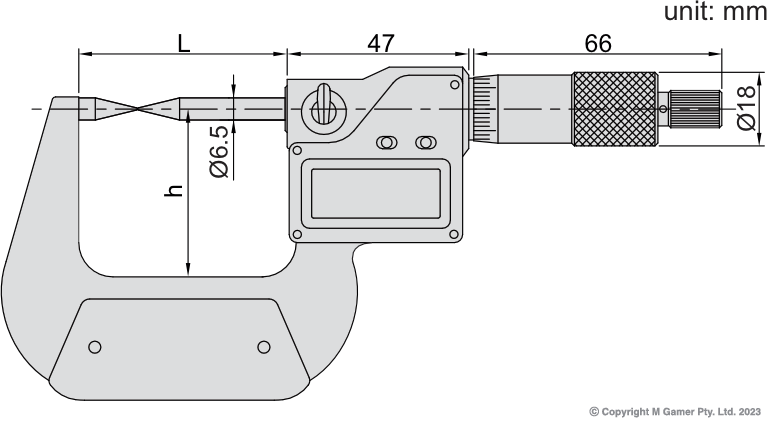

IP54 Digital Point Micrometer

Outside Micrometers

Digital

Measure the web thickness of drills, small grooves and keyways
Resolution 0.001mm/0.00005"
IP54 protection level
Button: on/off, set, mm/inch,ABS/INC, data output
Automatic power off
Data output
Ratchet stop
Carbide tips
Supplied with setting standards (except 0-25mm/0-1")

Brochure

Specifications

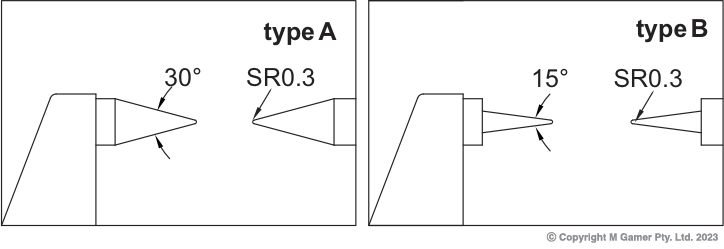

Part No	Status	Range	Accuracy	Setting Standards	Type
AC-317-001-01	Order In	0-25mm/0-1'	±4μm	-	A
AC-317-001-02	Order In	0-25mm/0-1'	±4μm	-	B
AC-317-002-01	Order In	25-50mm/1-2'	±4μm	25mm	A
AC-317-002-02	Order In	25-50mm/1-2'	±4μm	25mm	B
AC-317-003-01	Order In	50-75mm/2-3'	±5μm	50mm	A
AC-317-003-02	Order In	50-75mm/2-3'	±5μm	50mm	B
AC-317-004-01	Order In	75-100mm/3-4'	±5μm	75mm	A
AC-317-004-02	Order In	75-100mm/3-4'	±5μm	75mm	B
