Series 361
IP54 Digital Three Points Inside Micrometer
Resolution: 0.001mm/0.00005"
IP54 protection level
Button: on/off, set, mm/inch,ABS/INC, data output
Automatic power off
Data output
Ratchet stop
Carbide measuring faces (over 12mm series)

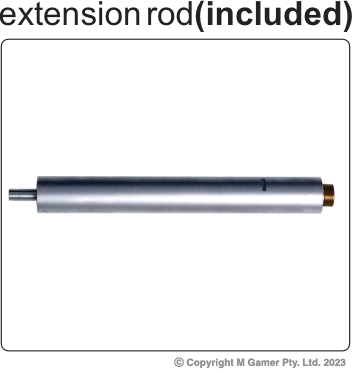

Extension rod are included

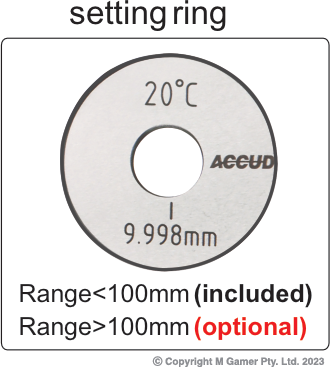

Setting rings are included (Range<100mm)
Specifications

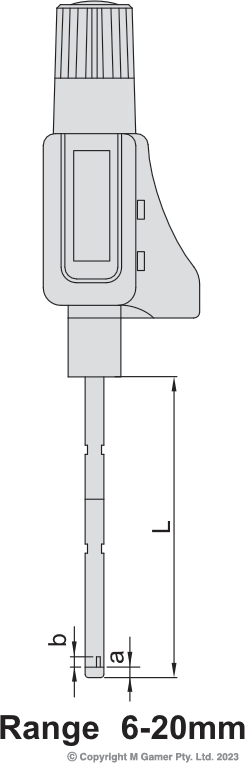

| Part No | Status | WebEnabled | Range | Accuracy | Setting Ring | Extension Rod | a | b | c | L |
|---|---|---|---|---|---|---|---|---|---|---|
| AC-361-001-01 | Order In | 1 | 6-8mm/0.24-0.31" | 4μm | Ø6mm(included) | 100mm | 1.5 | 2.5 | 0 | 54.5 |
| AC-361-002-01 | Order In | 1 | 8-10mm/0.31-0.4" | 4μm | Ø8mm(included) | 100mm | 1.5 | 2.5 | 0 | 63 |
| AC-361-003-01 | Order In | 1 | 10-12mm/0.4-0.47" | 4μm | Ø10mm(included) | 100mm | 1.5 | 2.5 | 0 | 63 |
| AC-361-004-01 | Order In | 1 | 12-16mm/0.47-0.63" | 4μm | Ø16mm(included) | 150mm | 0.5 | 6 | 4.5 | 80 |
| AC-361-005-01 | Order In | 1 | 16-20mm/0.63-0.8" | 4μm | Ø16mm(included) | 150mm | 0.5 | 6 | 4.5 | 80 |
| AC-361-006-01 | Order In | 1 | 20-25mm/0.8-1" | 4μm | Ø25mm(included) | 150mm | 0.5 | 8 | 6 | 105 |
| AC-361-007-01 | Order In | 1 | 25-30mm/1-1.2" | 4μm | Ø25mm(included) | 150mm | 0.5 | 8 | 6 | 105 |
| AC-361-008-01 | Order In | 1 | 30-40mm/1.2-1.6" | 4μm | Ø40mm(included) | 150mm | 0.5 | 14 | 12 | 110 |
| AC-361-009-01 | Order In | 1 | 40-50mm/1.6-2" | 5μm | Ø40mm(included) | 150mm | 0.5 | 14 | 12 | 110 |
| AC-361-010-01 | Order In | 1 | 50-63mm/2-2.5" | 5μm | Ø62mm(included) | 150mm | 0.5 | 17.5 | 14.5 | 114 |
| AC-361-011-01 | Order In | 1 | 62-75mm/2.5-3" | 5μm | Ø62mm(included) | 150mm | 0.5 | 17.5 | 14.5 | 114 |
| AC-361-012-01 | Order In | 1 | 75-88mm/3-3.5" | 5μm | Ø87mm(included) | 150mm | 0.5 | 17.5 | 14.5 | 114 |
| AC-361-013-01 | Order In | 1 | 87-100mm/3.5-4" | 5μm | Ø87mm(included) | 150mm | 0.5 | 17.5 | 14.5 | 114 |
| AC-361-014-01 | Order In | 1 | 100-125mm/3.94-4.92" | 6μm | optional | 150mm | 0.9 | 29 | 25 | 175 |
| AC-361-015-01 | Order In | 1 | 125-150mm/4.92-5.91" | 6μm | optional | 150mm | 0.9 | 29 | 25 | 175 |
| AC-361-016-01 | Order In | 1 | 150-175mm/5.91-6.89" | 7μm | optional | 150mm | 0.9 | 29 | 25 | 175 |
| AC-361-017-01 | Order In | 1 | 175-200mm/6.89-7.87" | 7μm | optional | 150mm | 0.9 | 29 | 25 | 175 |
| AC-361-018-01 | Order In | 1 | 200-225mm/7.87-8.86" | 8μm | optional | 150mm | 0.9 | 29 | 25 | 175 |
| AC-361-019-01 | Order In | 1 | 225-250mm/8.86-9.84" | 8μm | optional | 150mm | 0.9 | 29 | 25 | 175 |
| AC-361-020-01 | Order In | 1 | 250-275mm/9.84-10.83" | 9μm | optional | 150mm | 0.9 | 29 | 25 | 175 |
| AC-361-024-01 | Order In | 1 | 275-300mm/10.83-11.81" | 9μm | optional | 150mm | 0.9 | 29 | 25 | 175 |
Note: ETA for Order In products is between 8-12 weeks.
