Series 361
IP54 Digital Two Points Inside Micrometer
Resolution: 0.001mm/0.00005"
IP54 protection level
Button: on/off, set, mm/inch,ABS/INC, data output
Automatic power off
Data output
Ratchet stop
Carbide measuring faces
Setting rings are included
Specifications

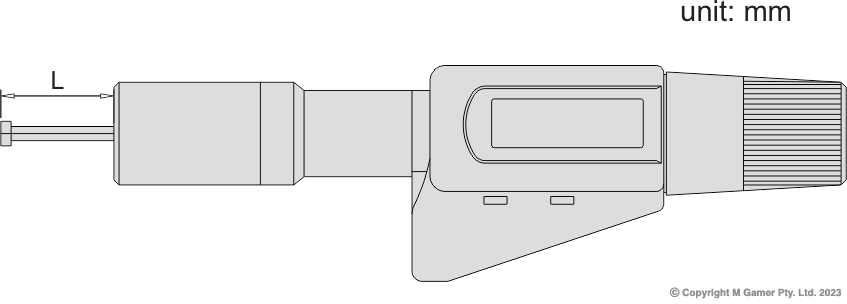

| Part No | Status | WebEnabled | Range | Accuracy | Setting Ring | L |
|---|---|---|---|---|---|---|
| AC-361-000-25 | Order In | 1 | 2-2.5mm/0.08-0.10" | 6μm | Ø2.5mm | 12 |
| AC-361-000-30 | Order In | 1 | 2.5-3mm/0.10-0.12" | 6μm | Ø2.5mm | 12 |
| AC-361-000-40 | Order In | 1 | 3-4mm/0.12-0.16" | 6μm | Ø4mm | 22 |
| AC-361-000-50 | Order In | 1 | 4-5mm/0.16-0.20" | 6μm | Ø5mm | 22 |
| AC-361-000-60 | Order In | 1 | 5-6mm/0.20-0.24" | 6μm | Ø6mm | 22 |
Note: ETA for Order In products is between 8-12 weeks.
