Series 330
Jaw Type Micrometer
Graduation: 0.01mm
Non-rotating spindle, painted frame
Ratchet stop

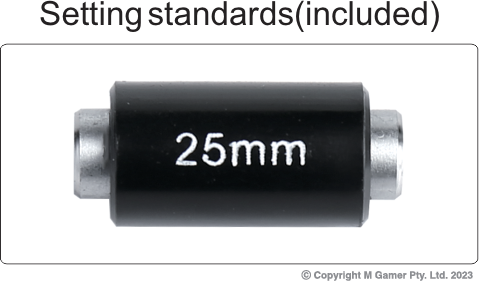

Supplied with setting standards (except 330-001-01)
Specifications

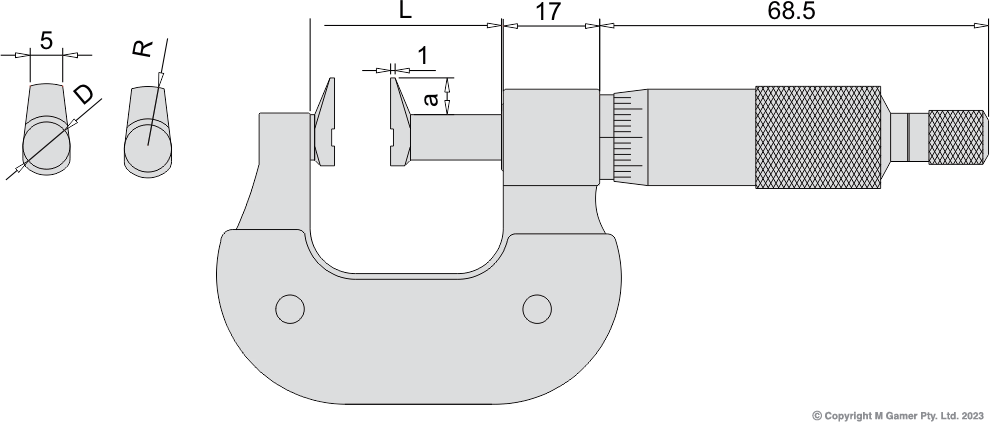

| Part No | Status | WebEnabled | Range | Accuracy | a | L | Setting Standards | R | Diameter |
|---|---|---|---|---|---|---|---|---|---|
| AC-330-001-01 | Order In | 1 | 0-25mm | 4μm | 6 | 34 | - | 10 | 8 |
| AC-330-002-01 | Order In | 1 | 25-50mm | 4μm | 6 | 59 | 25mm | 10 | 8 |
| AC-330-003-01 | Order In | 1 | 50-75mm | 5μm | 6 | 85 | 50mm | 10 | 8 |
| AC-330-004-01 | Order In | 1 | 75-100mm | 5μm | 6 | 110 | 75mm | 10 | 8 |
| AC-330-005-01 | Order In | 1 | 100-125mm | 6μm | 9 | 138 | 100mm | 15 | 12 |
| AC-330-006-01 | Order In | 1 | 125-150mm | 6μm | 9 | 163 | 125mm | 15 | 12 |
| AC-330-007-01 | Order In | 1 | 150-175mm | 7μm | 9 | 188 | 150mm | 15 | 12 |
| AC-330-008-01 | Order In | 1 | 175-200mm | 7μm | 9 | 214 | 175mm | 15 | 12 |
Note: ETA for Order In products is between 8-12 weeks.
