Series 332
Digital Non Rotating Spindle Disk Micrometer
Measure root tangent length of gear
Resolution 0.001mm/0.00005"
Non-rotating spindle
Button: on/off, set, mm/inch, ABS/INC, data output
Automatic power off
Data output
Ratchet stop

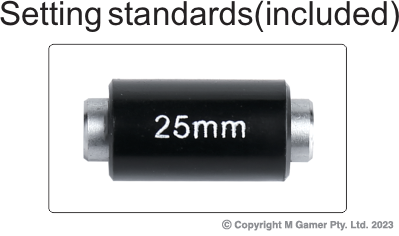

Supplied with setting standards(except 332-001-01)
Specifications
| Part No | Status | WebEnabled | Range | Accuracy | h | L | Setting Standards |
|---|---|---|---|---|---|---|---|
| AC-332-001-01 | Order In | 1 | 0-25mm/0-1" | ±4μm | 32 | 43 | - |
| AC-332-002-01 | Order In | 1 | 25-50mm/1-2" | ±4μm | 44.5 | 68 | 25mm |
| AC-332-003-01 | Order In | 1 | 50-75mm/2-3" | ±5μm | 57 | 93 | 50mm |
| AC-332-004-01 | Order In | 1 | 75-100mm/3-4" | ±5μm | 70 | 118.5 | 75mm |
Note: ETA for Order In products is between 8-12 weeks.
