Series 337

Hub Micrometer

Outside Micrometers

Analogue

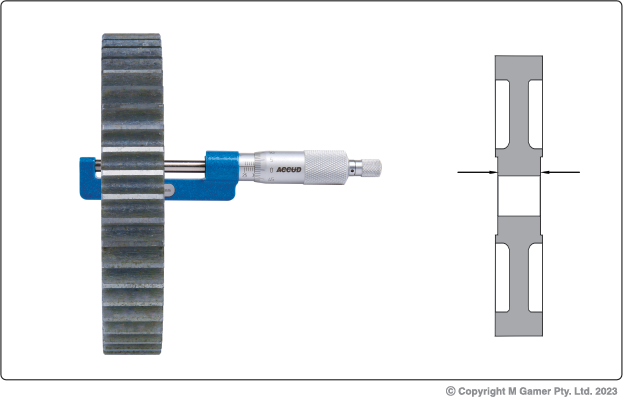

Measure hub thickness and shoulder inside a bore
Graduation 0.01mm
Ratchet stop
Carbide measuring faces

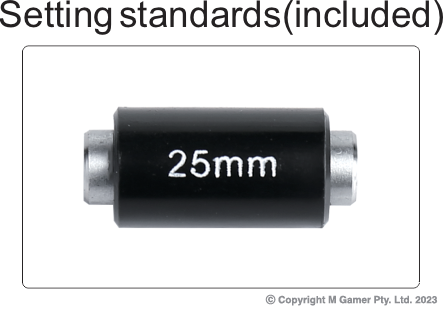

Supplied with setting standards (except 337-001-01)

Brochure

Specifications

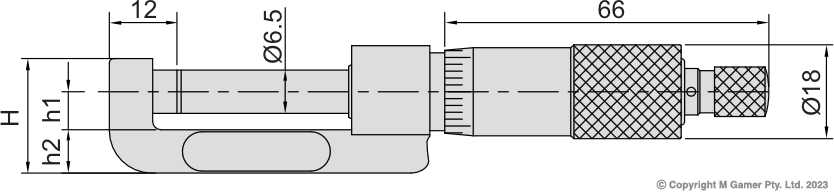

Part No	Status	WebEnabled	Range	Accuracy	h	Setting Standards	h1	h2
AC-337-001-01	Order In	1	0-25mm	4μm	18.7	-	6	9
AC-337-002-01	Order In	1	25-50mm	4μm	21.2	25mm	6.5	11
AC-337-003-01	Order In	1	50-75mm	5μm	21.2	50mm	6.5	11
AC-337-004-01	Order In	1	75-100mm	5μm	21.2	75mm	6.5	11
