Series 342
Disk Micrometer

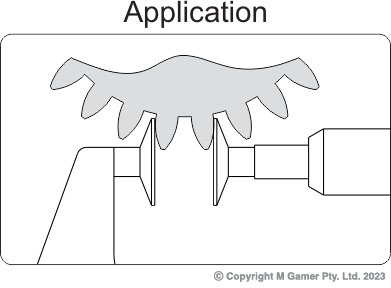

Measure root tangent length of gear
Graduation 0.01mm
Ratchet stop

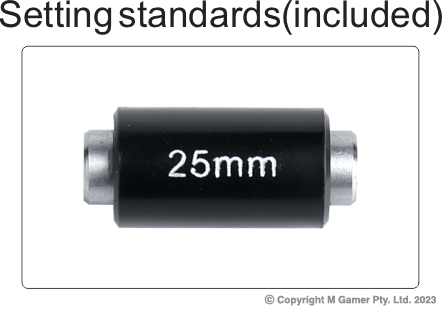

Supplied with setting standards (except 0-25mm)
Specifications

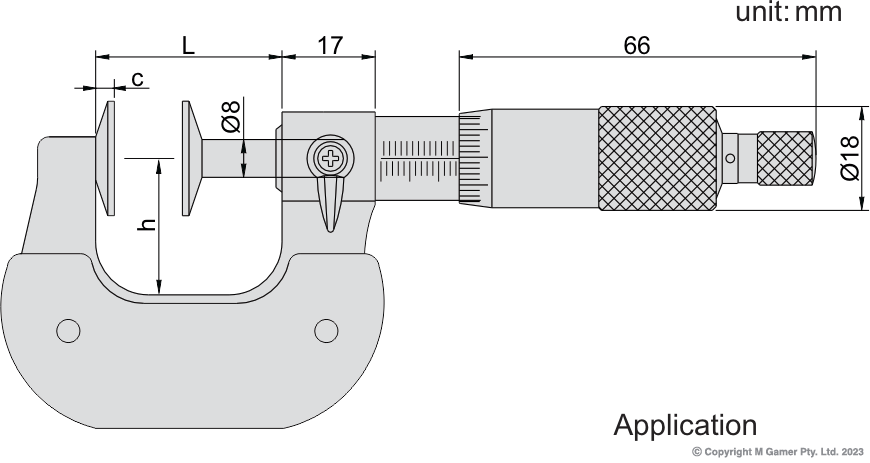

| Part No | Status | WebEnabled | Range | Accuracy | c | h | L | Setting Standards |
|---|---|---|---|---|---|---|---|---|
| AC-342-001-02 | Stocked | 1 | 0-25mm | 4μm | 3.3 | 24 | 34 | - |
| AC-342-002-02 | Stocked | 1 | 25-50mm | 4μm | 3.3 | 32 | 59 | 25mm |
| AC-342-003-02 | Order In | 1 | 50-75mm | 5μm | 3.3 | 45 | 85 | 50mm |
| AC-342-004-02 | Order In | 1 | 75-100mm | 5μm | 3.3 | 57 | 110 | 75mm |
| AC-342-005-02 | Order In | 1 | 100-125mm | 6μm | 4.3 | 70 | 138 | 100mm |
| AC-342-006-02 | Order In | 1 | 125-150mm | 6μm | 4.3 | 82 | 163 | 125mm |
| AC-342-007-02 | Order In | 1 | 150-175mm | 7μm | 4.3 | 95 | 188 | 150mm |
| AC-342-008-02 | Order In | 1 | 175-200mm | 7μm | 4.3 | 107 | 214 | 175mm |
Note: ETA for Order In products is between 8-12 weeks.
