Series 345

Gear Tooth Micrometer

Measure over-pin diameter of gears
Graduation 0.01mm
Ratchet stop
Supplied with setting standards (except 345-001-01)

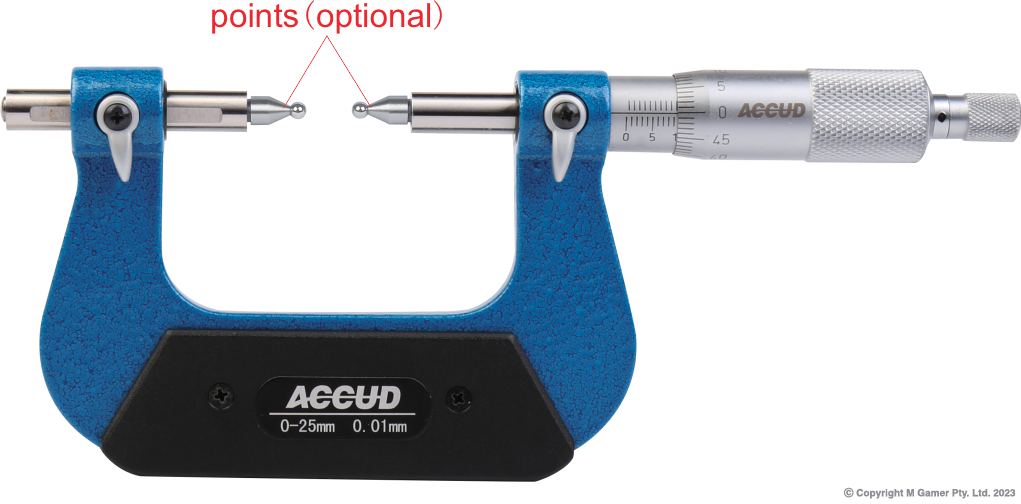

Optional accessory: ball tips

Brochure

Specifications

Part No	Status	Range	Accuracy	h	L	Setting Standards
AC-345-001-01	Order In	0-25mm	4μm	38	67	-
AC-345-002-01	Order In	25-50mm	4μm	50	92.4	25mm
AC-345-003-01	Order In	50-75mm	5μm	62	117.6	50mm
AC-345-004-01	Order In	75-100mm	5μm	70	143	75mm
AC-345-005-01	Order In	100-125mm	6μm	82	168.2	100mm
AC-345-006-01	Order In	125-150mm	6μm	94.5	192	125mm
AC-345-007-01	Order In	150-175mm	7μm	107	217	150mm
