Series 371
Micrometer Head
Graduation: 0.01mm
Carbide measuring faces
Ratchet stop
Specifications
| Part No | Status | WebEnabled | Range | Accuracy | Stem | Spindle Tip |
|---|---|---|---|---|---|---|

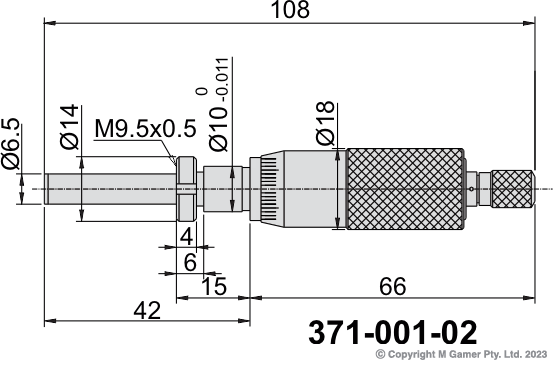

| AC-371-001-02 | Order In | 1 | 0-25mm | 0.003mm | with clamp nut | flat (carbide) |
| AC-371-001-03 | Order In | 1 | 0-25mm | 0.003mm | with clamp nut | spherical (SR5) |

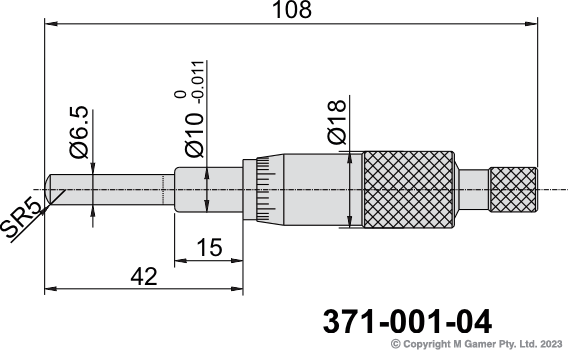

| AC-371-001-04 | Order In | 1 | 0-25mm | 0.003mm | plain | spherical (SR5) |

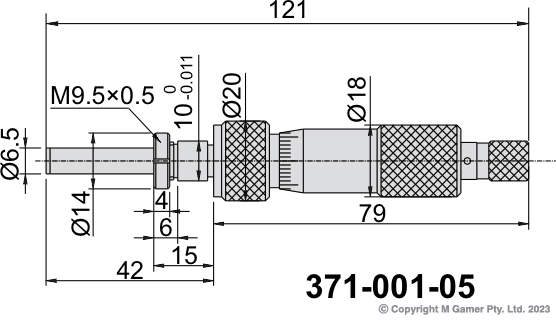

| AC-371-001-05 | Order In | 1 | 0-25mm | 0.003mm | with clamp nut | flat (carbide) |

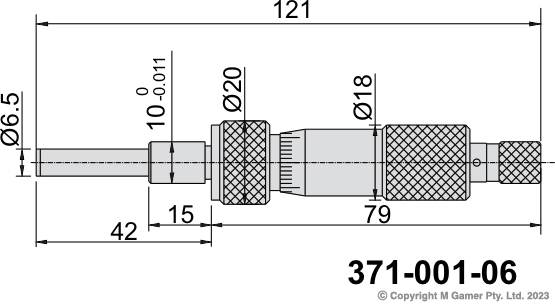

| AC-371-001-06 | Order In | 1 | 0-25mm | 0.003mm | plain | flat (carbide) |
| AC-371-001-11 | Order In | 1 | 0-25mm | 0.003mm | plain | flat (carbide) |
Note: ETA for Order In products is between 8-12 weeks.
